Die changing cart RWA500

manually movable
with safety docking station
max. load capacity 500 kgWZ 8.8900 Die Changing Carts RW 500

manually movable, docking station, max. load capacity 500 kg

Application

Die changing carts RW 500 facilitate the handling of medium-weight dies and enable dies weighing up to 500 kg to be safely transported in a way that saves effort and time.
All cart types are specifically designed for pressing and punching dies as well as for injection and casting moulds.

Description

Die changing cart RW 500 is moved manually. The changing table is equipped with ball inserts that make it easier to insert the dies manually.
The height of the table can be adjusted via a hydraulic lifting column using a foot pedal.

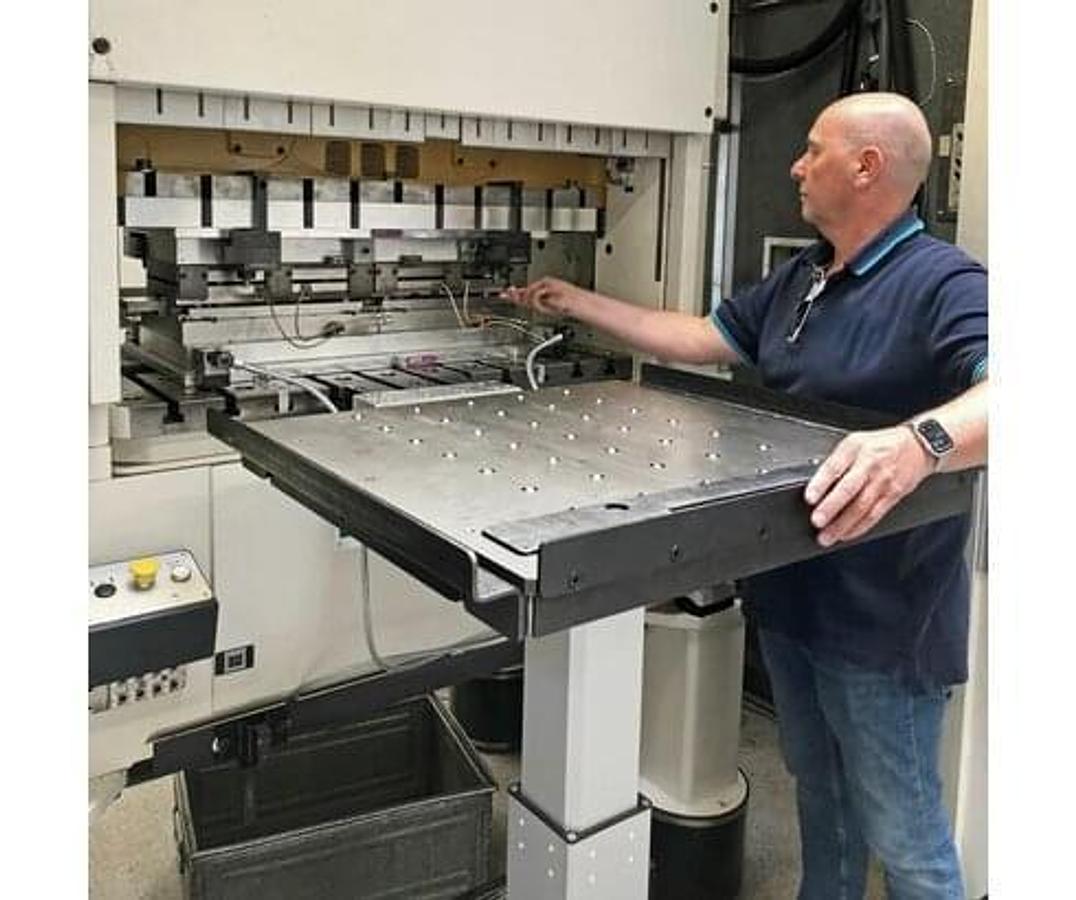

Application: die changing cart RW 500 with ball table on a Bruderer punching machineDie changing cart RW 500

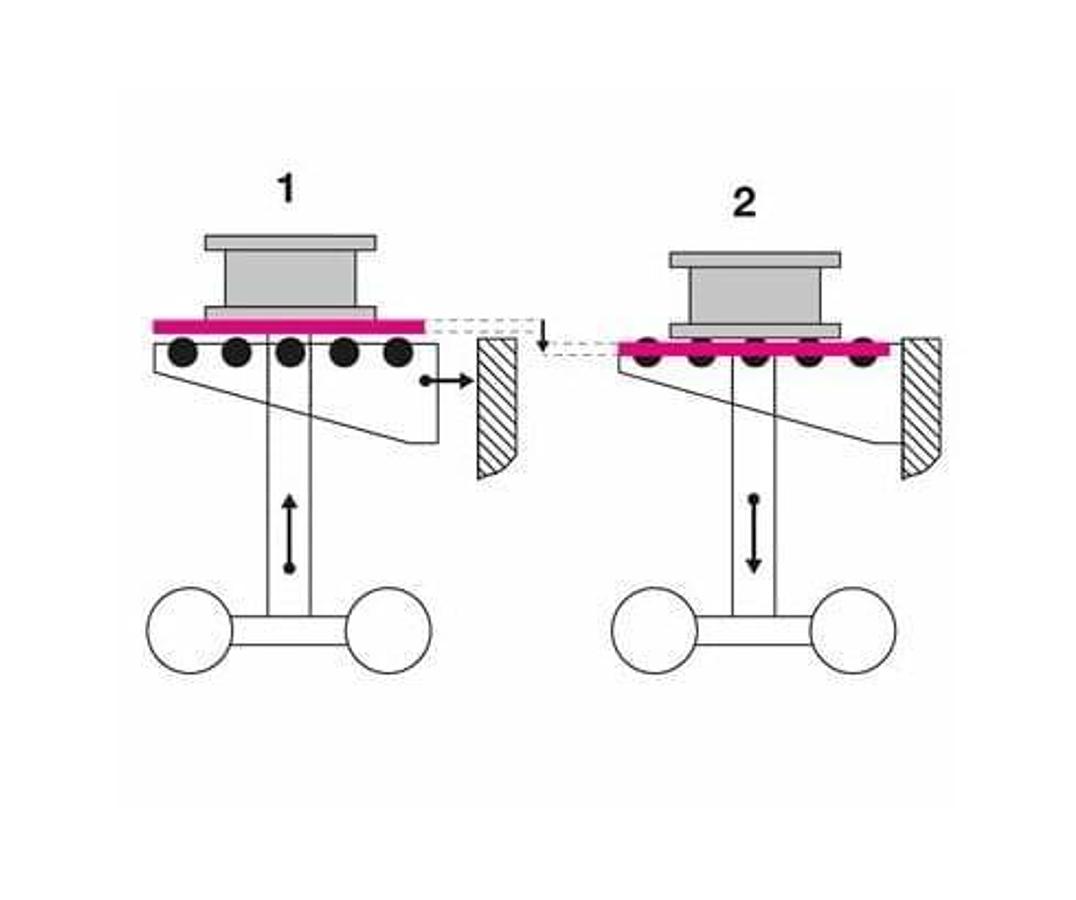

Safety docking station

The docking hooks (2 pieces included in our delivery) for mounting on the changing or press bed (accessory) ensure precise locking of the die changing cart. Ball inserts are lifted by successful docking to the press bed. The die weight is supported entirely at the press bed.

1. Transport

lifting column extended

ball inserts lowered

die on table plate

2. Docking

lifting column lowered

ball inserts lifted

die on ball inserts

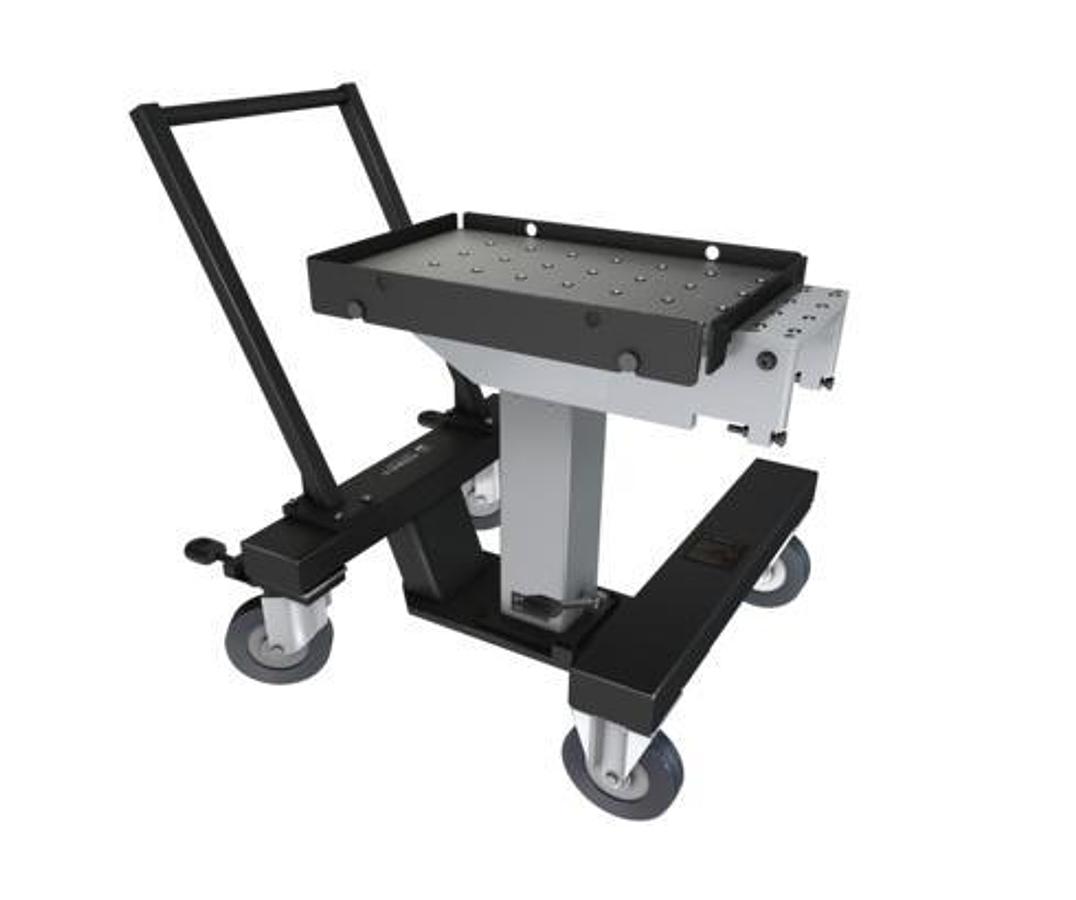

Die changing cart RWA500with electrical, battery driven auxiliary drivewith ball table with hard-anodized surfaceon a lifting columnoperation with foot pedalwith parking brake and 2 steering and 2 fixed rollerswith battery chargerType S = Standard 1.8 A100 … 230 V AC, 50 / 60 Hzcharging time 3 h (approx. 90 %)link to the product video:as per catalogue sheet WZ 8.8900
