Die changing cart RW1000

manually moveable
with safety docking station
max. load capacity 1,000 kgWZ 8.8901 Die Changing Cart RW 1000

manually moveable, with safety docking station, max. load capacity 1,000 kg

Application
Die changing carts RW 1000 facilitate the handling of medium-weight dies and enable dies
weighing up to 1,000 kg to be safely transported in a way that saves effort and time.
All cart types are specifically designed for pressing and punching dies as well as for injection and casting moulds.



Description

Die changing cart RW 1000 is moved manually. Version -B of the die changing cart is also
equipped with a bridge at the front for docking onto the press bed.
The die changing table of both versions is equipped with ball inserts which facilitate the
manual insertion of the dies. The height of the table can be adjusted via a hydraulic lifting column with precision lowering using a foot lever.

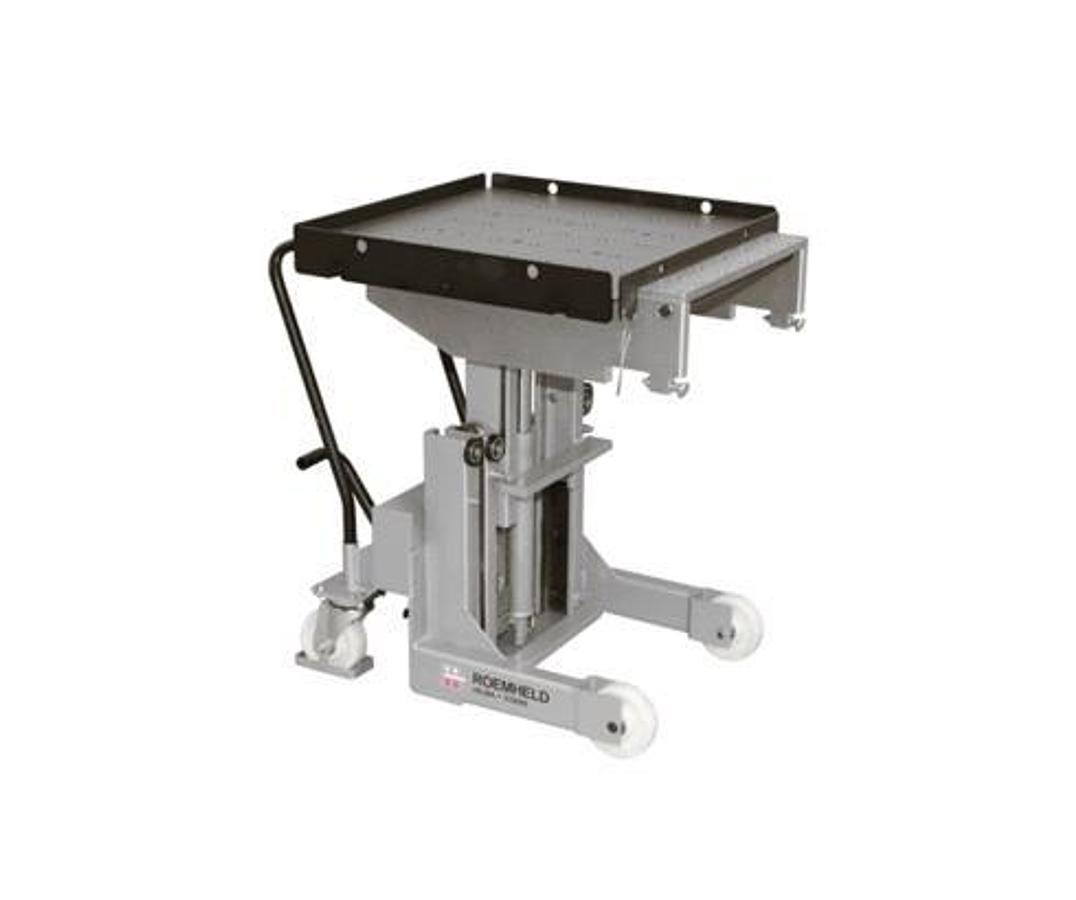

Die Changing Cart RW 1000

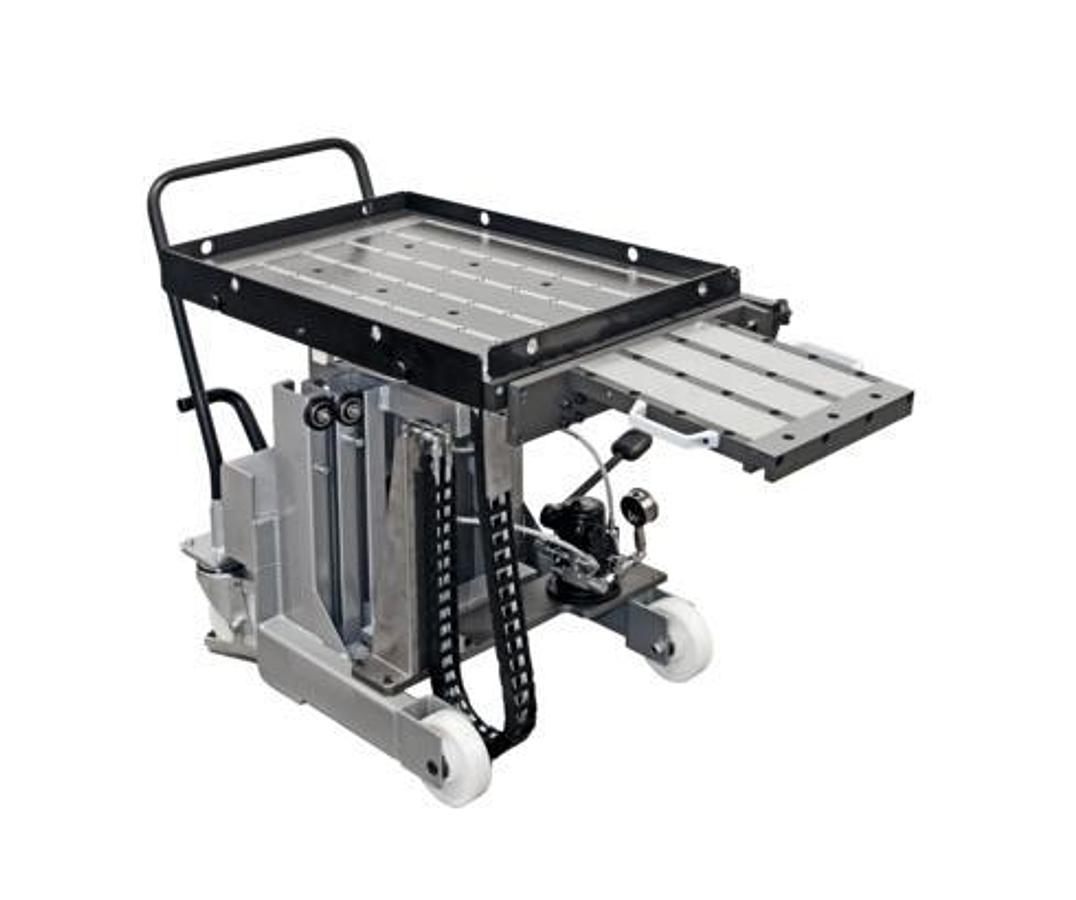

Die changing carts RW 1000-B with attached bridge

Die changing carts RW 1000 are available as versions with attached bridge. The changing table is equipped at the front with a bridge and docking bar for docking onto the press bed.

Colliding edges on the press bed can thus be easily bridged to facilitate the insertion of dies. During the transport, the ball bars are always lowered and the die is protected against movement. Only when the bridge is horizontally aligned and the docking bar is docked can the hydraulic inserts be lifted using the foot pump and the die safely pushed onto the press bed.
The foot pedal for lowering the hydraulic bars in the bridge can be operated either on the right or left.

Die Changing Cart RW 1000-B with attached bridge

Safety docking station

The docking hooks or the docking bar for mounting on the press or changing table ensure precise locking of the die changing cart.
The ball inserts are lifted onto the die changing cart without a bridge by successfully docking onto the press bed. The die weight is supported entirely at the press bed.
In version -B, with attached bridge, the ball inserts can only be lifted using a hydraulic foot pump when successfully docked to the docking bar on the press bed and with the bridge aligned horizontally.

1. Transport

lifting column extended

ball inserts lowered

die on table plate

2. Docking

lifting column lowered

ball inserts lifted

die on ball inserts

Die changing cart RW1000with ball table with hard-anodized surfacewith safety docking stationon a hydraulic lifting unitoperation with foot pedalwithout auxiliary drivewith parking brake and 2 steering and 2 fixed rollersas per catalogue sheet WZ 8.8901
