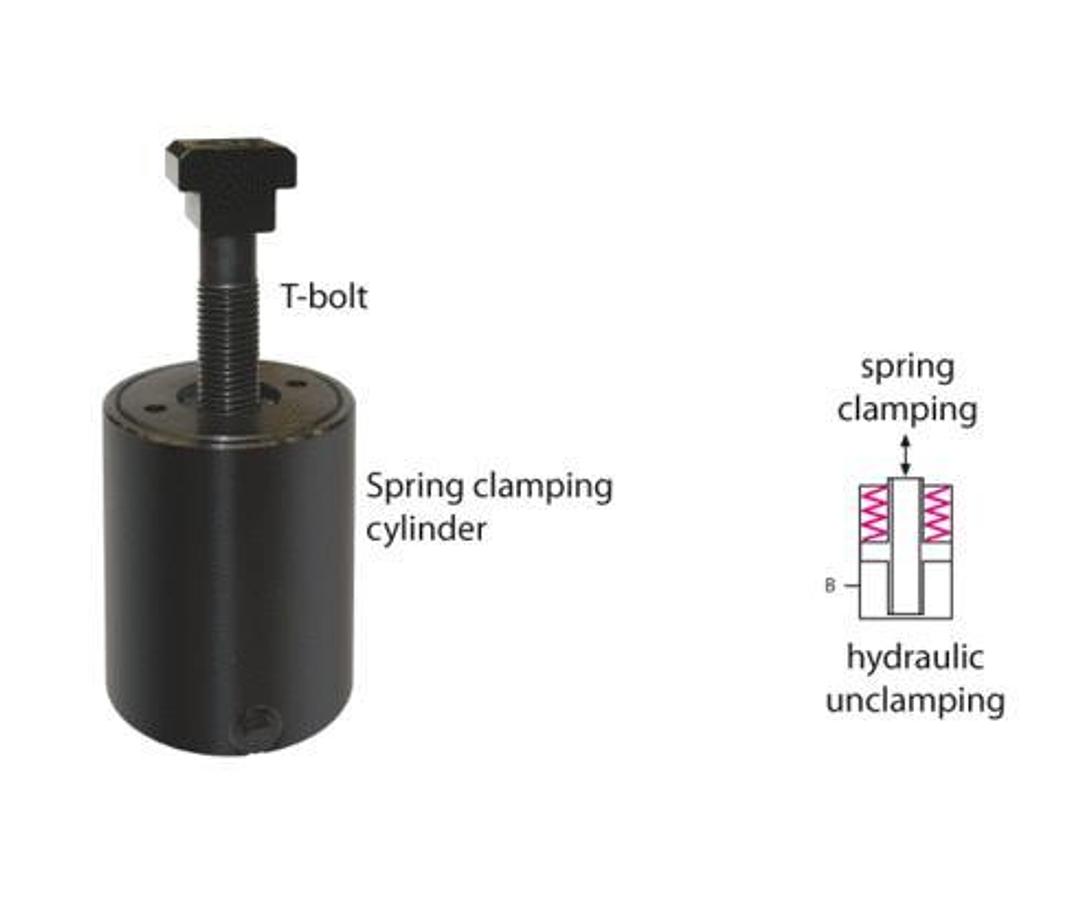

Bracket to accommodate a spring clamping cylinder

spring clamping - hydraulic unclamping
single acting
clamping force 50 kNHollow-piston cylinders 3.1403, spring clamping

Manual positioning of the element on the die clamping edge.
Unclamping by the application of hydraulic pressure to the piston and clamping by spring force. By means of the T-bolt the die is clamped against the clamping surface of the press ram or bed.
Applications

unpressurised long-term clamping of dies or fixtures on press beds and rams

when the available space is limited

Special features

hydraulic supply is only required for unclamping, i.e. for a short time

ideal force transmission

convenient and compact design with gripping surface

no interfering edges when inserting the dies

easy retrofit

easy installation

Hollow-piston cylinders 3.1403 , spring clampingBracket to accommodate a spring clamping cylinderwithout spacer barfor T-slot 28 mm*as per catalogue sheet WZ 3.1403
