Sized For Small Tonnage Presses

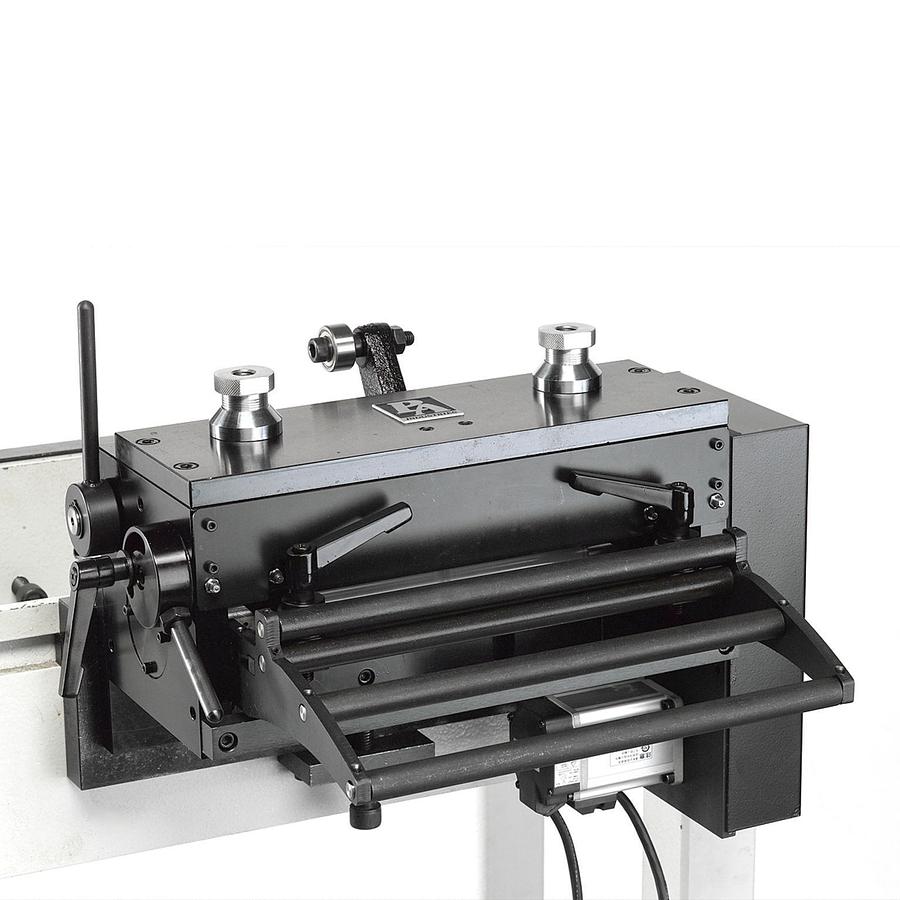

Time to replace your Air Feed with a truly affordable Servo Roll Feed - The P/A Mini.

The reduction in maintenance and downtime alone easily justifies the switch to the Mini Feed. These Mini Servo Feeds have all of the benefits and features of our larger models. Rugged Steel Frame Construction, Permanently Mounted Feed Rolls, High Performance AC Brushless Servo Motor, Matte Finished Hard Chrome Feed Rolls, Feed mounting bracket for up to 2.5 inch (64mm) of die height adjustment AND MANY MORE...

Specifications

Manufacturer	P/A Industries
Model	SRF-320
Condition	New
Feed Roll Diameter (in.)	1.8
Max Roll Opening (in.)	.078
Max Thickness at Full Width (in.) / (in.)	.060/12.5
Pulling Power Peak/Cont. (Lbs.)	212/71
AC Power Input VAC/Ph/Hz/Amps	220/1/60/15
Feed Roll Diameter (mm)	45
Max Roll Opening (mm)	2,00
Max Thickness at Full Width (mm) / (mm)	1,52/320
Pulling Power Peak/Cont. (N)	943/318
