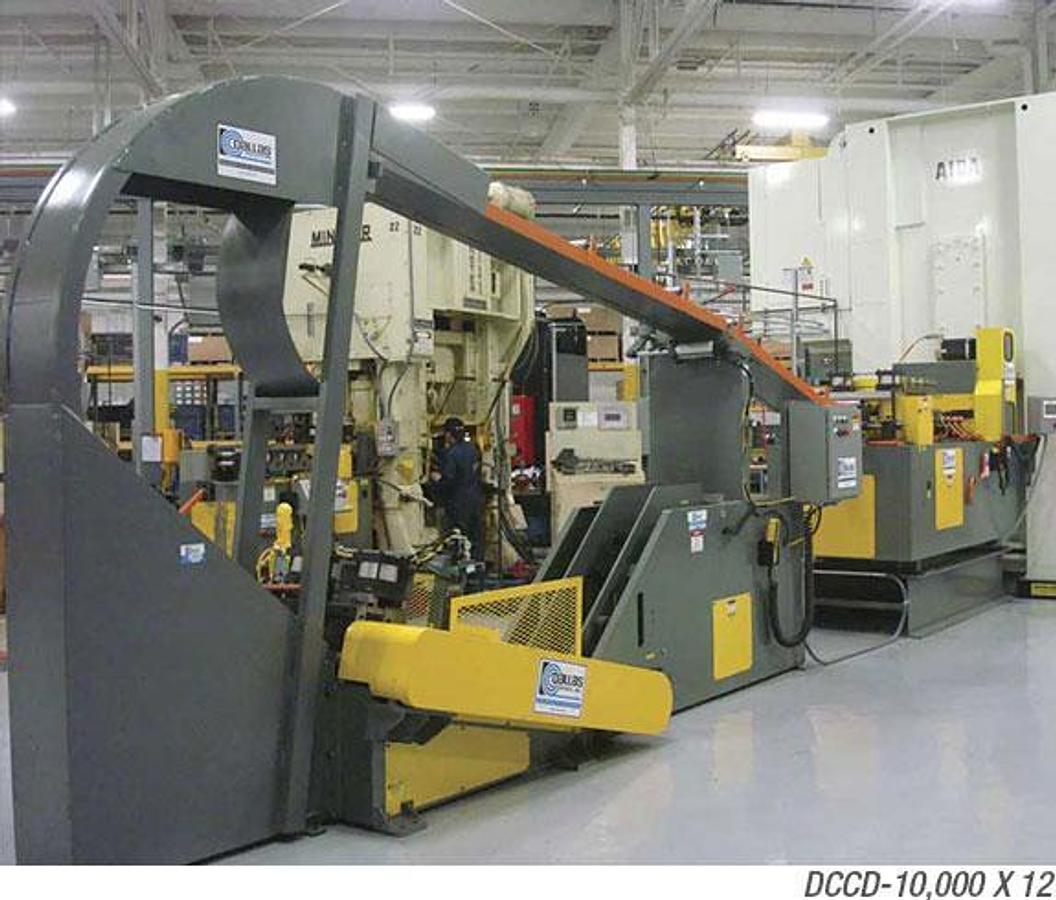

DCCD-10,000 x 12

Cradle with Overhead Deflector – this is a common configuration for a cradle line. The coil is driven via the cradle nest rolls and a pinch roll assembly up the overhead deflector where the loop is stored. The material travels down the chute to a servo feed with pull thru straightener for an effective and compact, heavy gage feed line. Alternatively, a powered straightener may replace the pinch roll in the cradle base if desired. Numerous options can be added to help safely process thick materials. Dallas coil cradle capacities range from 4,000 to 50,000 lbs. and come standard with heavy-duty cabinets and side plates built to stand up to your toughest jobs. Features include full width powered nest rolls, adjustable side plates, AC variable speed drives, and cluster geared pinch rolls. Both pinch rolls and nest rolls are powered from a common cradle drive. Optional overhead, enclosed loop deflectors and guide-chutes direct the flow of the material and provide easy loading. Powered straighteners can be added to this configuration. Alternatively, cradle/straightener combo units (slack loop in front) are also available.
